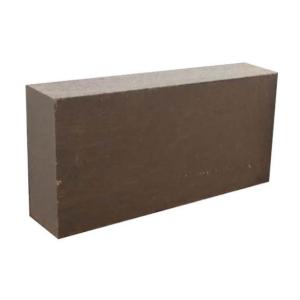

Fusd-bonded MgO-Cr2O3 Brick
Fusd-bonded MgO-Cr2O3 Brick/High slag resistance, fire resistance and high temperature resistance/Excellent thermal shock stability/Strong heat shock resistance/Excellent resistance to erosion
Summary:
Fusd-bonded MgO-Cr2O3 Brick is a high-end product with excellent corrosion resistance, mainly made of magnesia chrome spinel synthesized by capacitive method, and processed by high-pressure molding and high-temperature sintering.
Product features:
- 1.High temperature performance:Fusd-bonded MgO-Cr2O3 Brick has high slag resistance, fire resistance and high temperature resistance, in steel, steel alloy, copper and aluminum and glass high temperature industries are widely used
- 2.Thermal shock stability: This material also has excellent thermal shock stability, strong heat shock resistance, and is not prone to cracking
- 3.Excellent resistance to chemical erosion: Fusd-bonded MgO-Cr2O3 Brick can withstand various chemical corrosion such as acid, alkali, salt, etc
Range of application:
Used for the working lining of the key locations of RH, VOD, AOD furnaces and copper flash furnace.
Technical data:
Brand
Specification |
Fusd-bonded MgO-Cr2O3 Brick |
| ZDMGe-26A |
ZDMGe-24A |
ZDMGe-22A |
ZDMGe-22B |
ZDMGe-20A |
ZDMGe-20B |
ZDMGe-16A |
ZDMGe-16B |
| MgO%≥ |
50 |
52 |
54 |
54 |
58 |
58 |
62 |
62 |
| Cr2O3%≥ |
26 |
24 |
22 |
22 |
20 |
20 |
16 |
16 |
| SiO₂%≤ |
1.2 |
1.2 |
1.2 |
1.5 |
1.2 |
1.5 |
1.2 |
1.5 |
| Apparent Porosity % ≤ |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
| Bulk Density g/cm³ ≥ |
3.30 |
3.30 |
3.30 |
3.25 |
3.25 |
3.25 |
3.25 |
3.25 |
| Cold Crushing Strength MPa≥ |
45 |
45 |
45 |
40 |
45 |
40 |
45 |
40 |
| Refractoriness Under Load of 0.2MPa ℃ ≥ |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
Packaging and Storage:
Wooden pallets+thermoplastic film packaging,size 110×80×70 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 6 months.
Construction method:
Dry masonry.
